Evolution Racewerks BMW B46/B48 (2.0T) F30/F32/F33/F20/F21 Turbo to Intercooler Charge Pipe (TIC)

From  Original price was: $359.95.Current price is: $323.96.

-

SKU: BM-ICP019 Category:

Ease of Installation: (1 Easy, 5 Hard) 1

Key Features:

  • Increase throttle response and decreases turbo lag.
  • Lightweight High Grade 6061 Aluminum Piping.
  • Replaces the factory soft plastic charge pipe that is prone to breaking under high boost.
  • Throttle body matched 3" piping unlike other brands that use 2.5" piping.
  • Retains factory style o-ring c-clip lock flange.  Precision CNC machined flanges ensures leak free connection to turbocharger and throttle body.

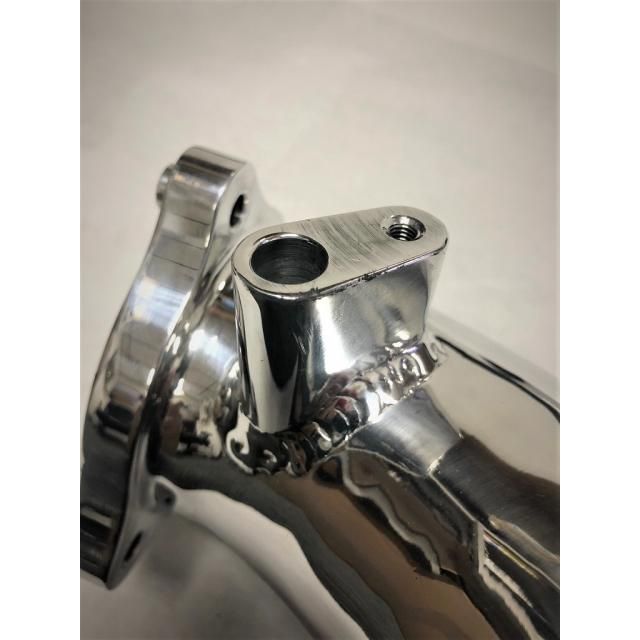

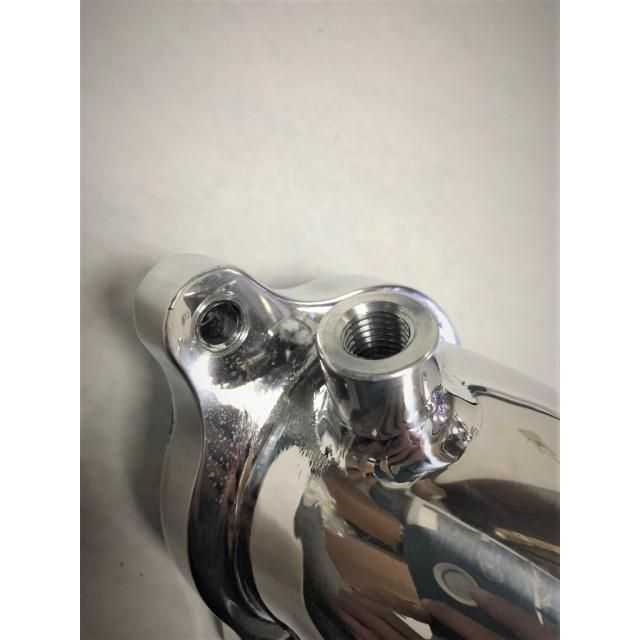

  • Precision CNC machined MAP sensor and IAT flanges ensures leak free connection.
  • Charge Pipe features beaded ends and T-bolt clamps to prevent intercooler piping from coming off from boost.
  • Silicone Hump Hose included.
  • Optional Type III Hard Black Anodizing (for stealth and OEM look).  Hard anodizing helps improve durability of intercooler piping.  Resists bent or dented piping.
  • Compatible with the factory electronic diverter valve.
  • Includes all hardware for complete installation.
  • Limited Lifetime Warranty.

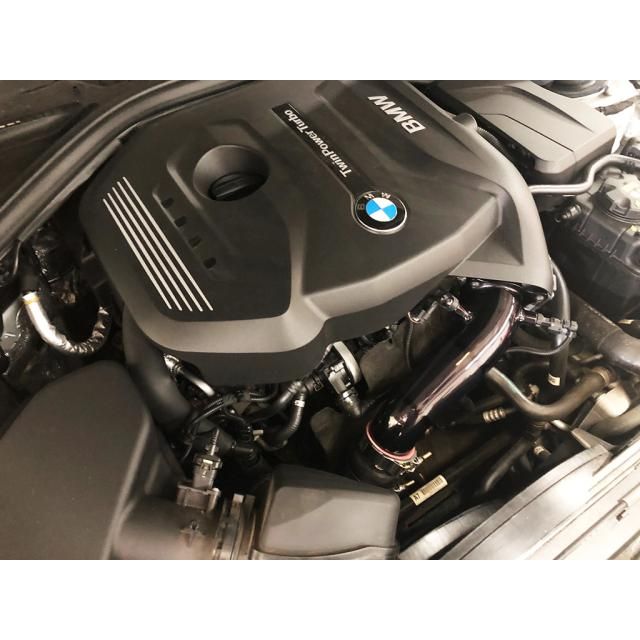

Type III Hard Anodize Black Finish installed on vehicle.

Turn up the boost with a tune and find your factory charge pipe break apart?  You are not alone as this is a common situation with many enthusiast in this situation.  The factory charge pipe is made out of plastic and was not designed to handle the higher boost levels.  Well, fear not!  The solution is here!  Replace it with a higher flowing, stronger aluminum charge pipe!  Made 100% of 6061 high grade aluminum, this will never happen again (backed by our Limited Lifetime Warranty)!

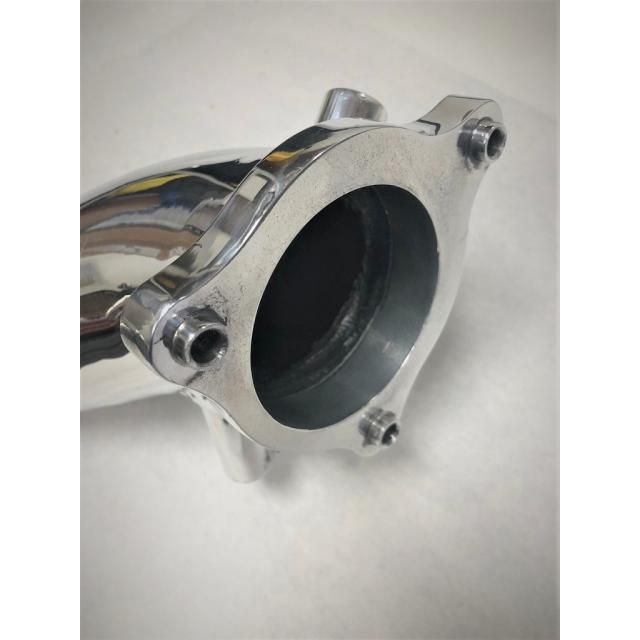

Often ignored, charged intake airflow characteristics greatly affect throttle response, turbo lag and ultimately maximum power potential.  Smooth bends and minimal obstructions are ideal. We used 6061 aluminum (lightweight) mandrel bent piping to ensure smooth transitions.  The upper pipe features a long smooth transition from 2.5" from the turbocharger outlet to 3" to match the factory throttle body, ensuring a smooth transition much like the factory unit.  Our competitor's on the other hand run a 2.5" to the throttle body which causes a "step" right at the throttle plate which is not ideal for flow.  The results?  Better throttle response and decreased turbocharger lag with our Charge Pipe Kit!

All flanges on our charge pipe kit are CNC Computer Machined for precision fitment and quality.  The entire charge pipe is TIG welded for strength and beauty.

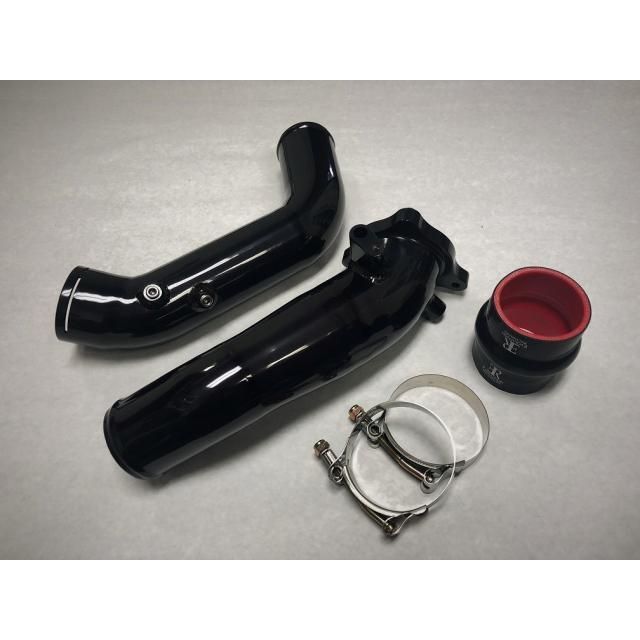

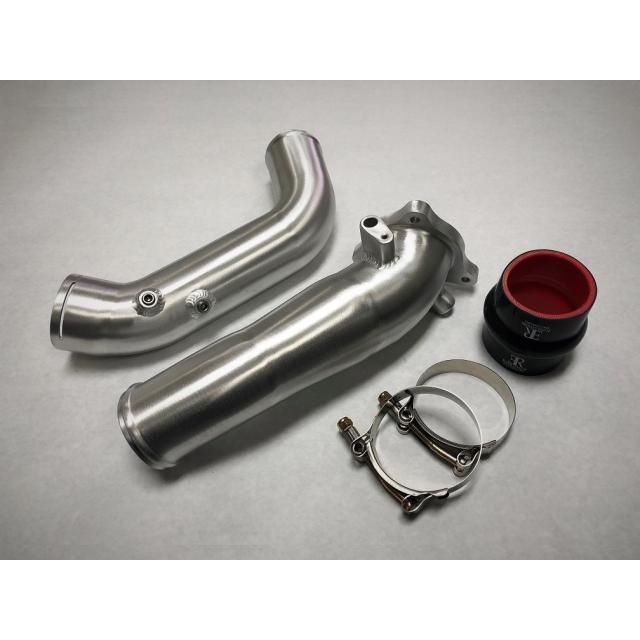

Our Charge Pipe is available in 3 finishes.  It is available in brush (plain) or mirror polish finish standard.  It is also available in our Type III Hard Black Anodizing for the stealthy, factory look.  An added benefit of the Type III Hard Black Anodizing is that it hardens the aluminum piping and makes it more durable against damage (like dropping the pipe).

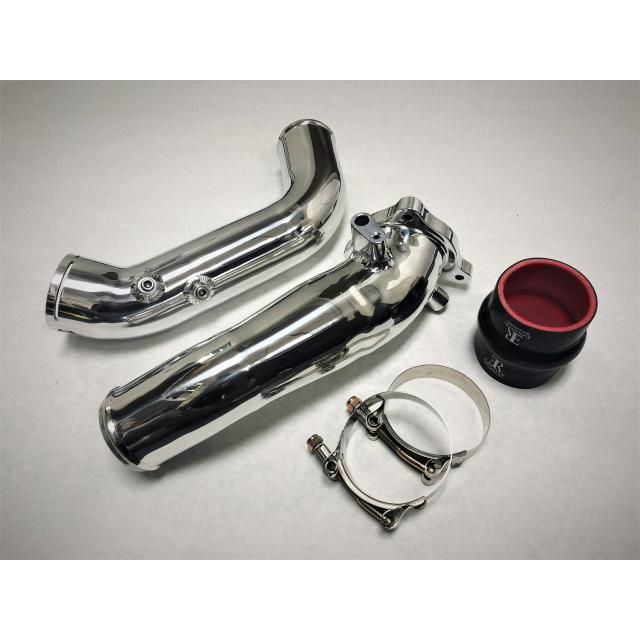

The B46/B48 Charge Pipe Kit features two charge pipes, the upper and lower charge pipes.  Both charge pipes are included in the kit and are required for installation.

1/8" NPT Bungs (For Methanol or Nitrous Injectors):

With the popularity of methanol injection systems and nitrous systems, our charge pipe come with two 1/8" NPT  threaded bung (for methanol or nos injectors) welded to our diverter valve charge pipe.  This allows quick and easy installation of methanol/nitrous injectors that are used in methanol injection systems and nitrous systems.  Each 1/8" NPT bung will come with a plug so that you can run with or without the methanol injector.  This is perfect for those who do not have the Methanol Injection yet but plan to do so in the future.

Also, the 1/8" NPT bung can be used as a boost source.  Perfect place to connect your boost gauge or other devices to.  The N55 engine does not have a pressurize hose or fitting from the factory that you can easily tap into.  Now you do!  Requires the optional vacuum fitting.

Note - For customers who have the Aquamist Methanol Injection Kit, Aquamist injectors use a 8mmx0.75 thread pitch instead of the 1/8" NPT standard that every other brand uses.  If you have an Aquamist Methanol Kit, no worries!  We have bungs made specifically for the Aquamist.  Specify below if you need Aquamist bungs.  Since this affects a very low amount of people, they will be custom made for you and not be regularly stocked.  Also, we do not have plugs for these bungs.  You will have to already have the Aquamist kit.

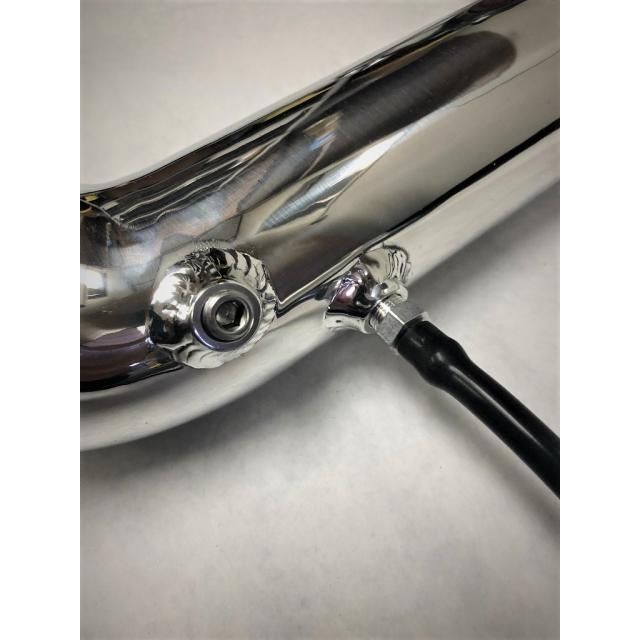

1/8" NPT Bungs (for methanol or nitrious injectors).

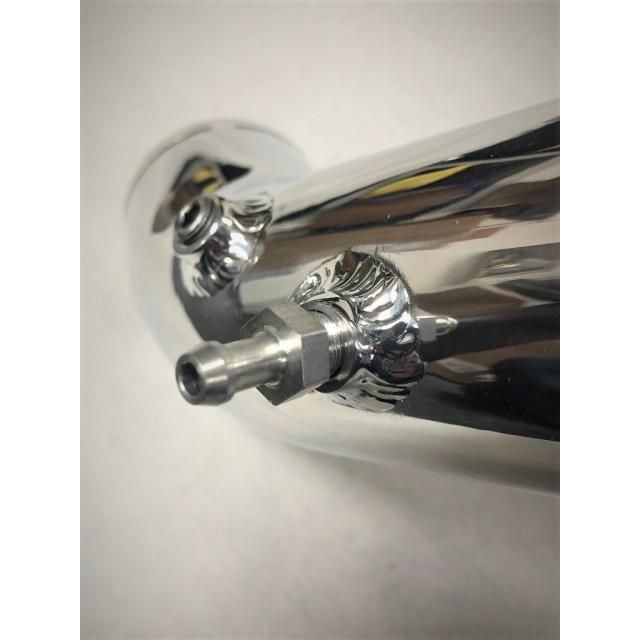

Each bung comes with a plug (shown). Optional Vacuum Fitting Shown.



Add the optional 1/8" NPT Vacuum Fitting to convert one of the 1/8" NPT bungs into a vacuum/pressure source port.





Additional information

Charge Pipe Finish:

Mirror Polished, Brushed, Type 3 Anodized Black +$40

1/8" NPT Vacuum Fitting:

No, Yes
