CANchecked Digital Gauge BMW G series incl. M2 M3 M4

The brand new second generation (GEN 2) of CANchecked displays offers

• Improved graphics with better anti-aliasing
• Swipe instead of tap
• The widgets can be adjusted more precisely
• New warning popup features

What is CANchecked? CANchecked displays, measuring devices, software and sensors enable the visual representation of important engine data such as oil temperature, boost pressure, lambda, exhaust gas temperature etc. This can be done either via CAN bus (depending on the ECU values) or via additional analog sensors.

Features:
– 3,2 inch capacitive touch display with mounting frame
- Controller values ​​can be displayed (adapter cable included)
– 8GB SD memory card
– Up to 10 freely configurable display pages

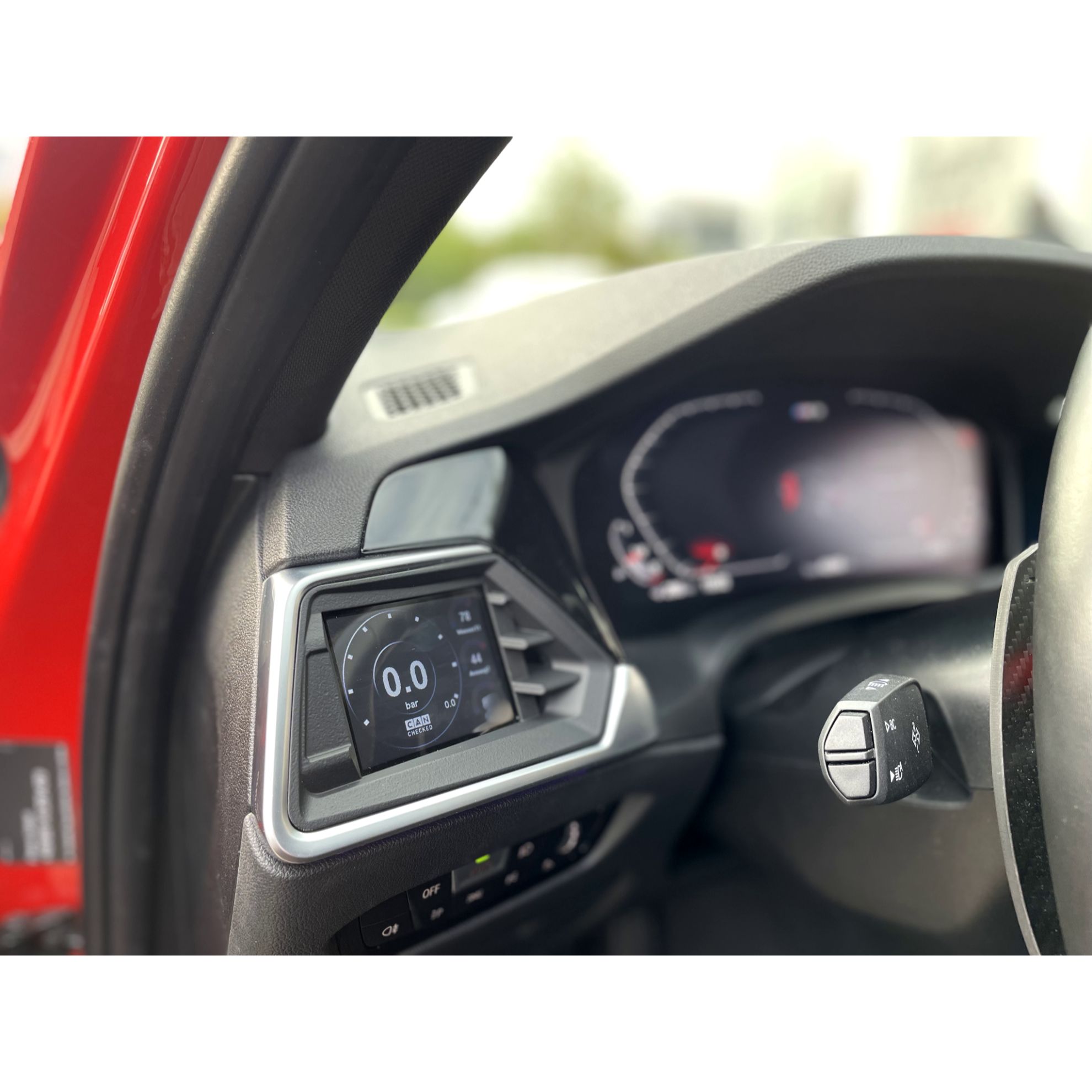

- Connection via the junction box in the footwell (see installation instructions)
- Two digital and four analog inputs for 0 - 5V sensors (e.g. oil pressure, fuel pressure, exhaust gas temperature (with adapter) and boost pressure)
– Integrated shift light

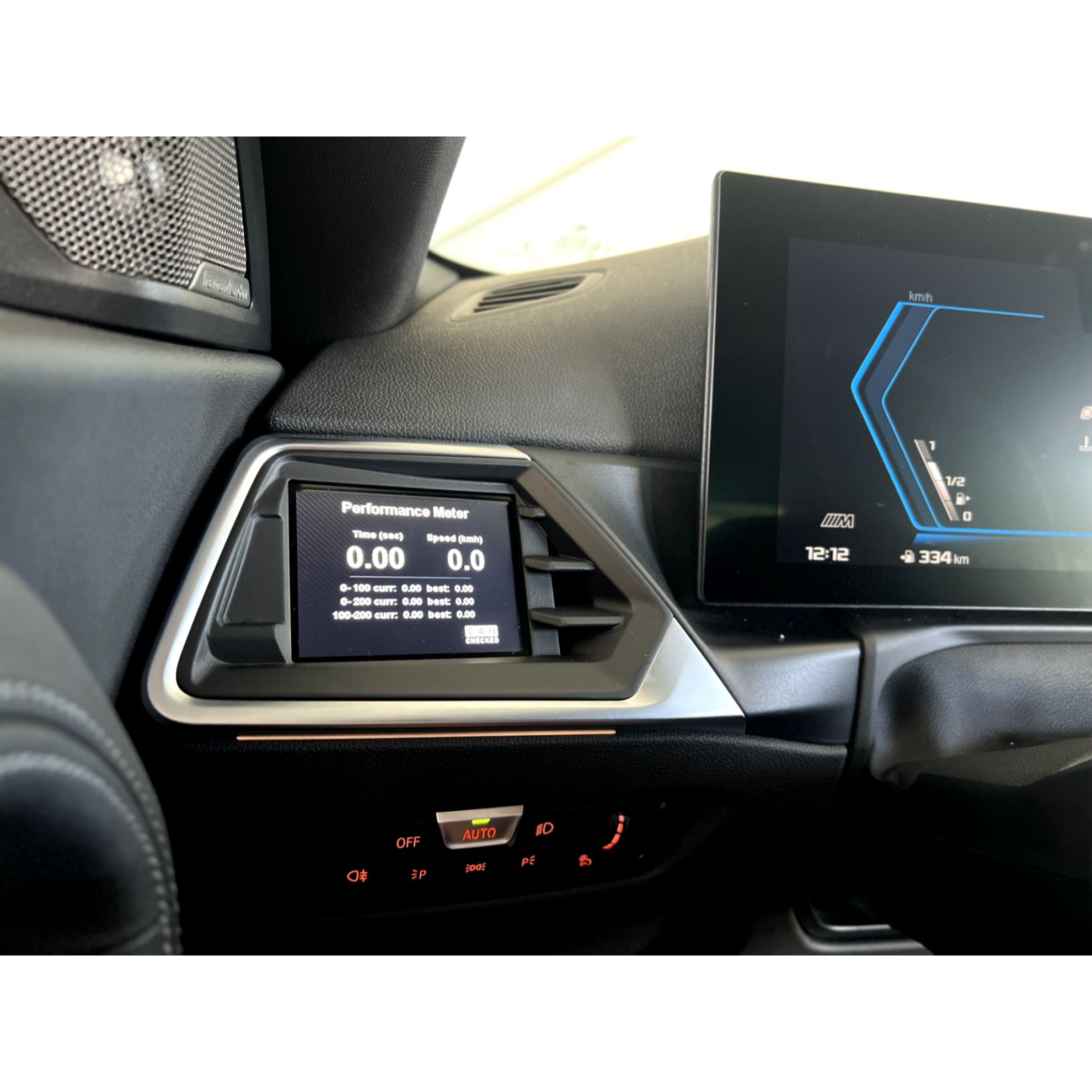

– Performance Meter (e.g. measures the time from 100-200 km/h)
– Individual minimum and maximum warning values
– Popup function when warning values ​​are exceeded or not reached
- Screen brightness adjustable (dims automatically with the vehicle displays)



Views:
– 10 pages of free configuration
– Up to 17 widgets per page

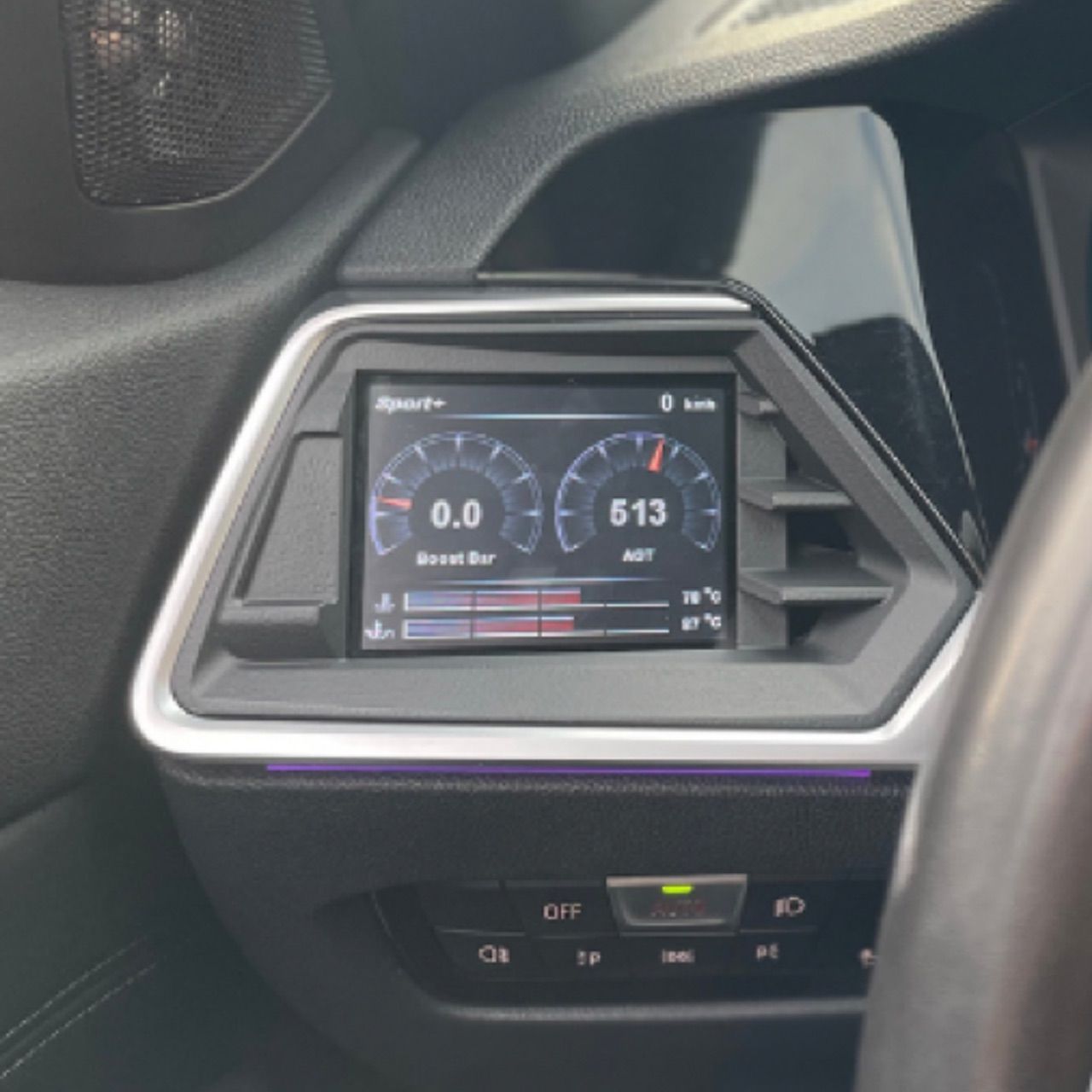

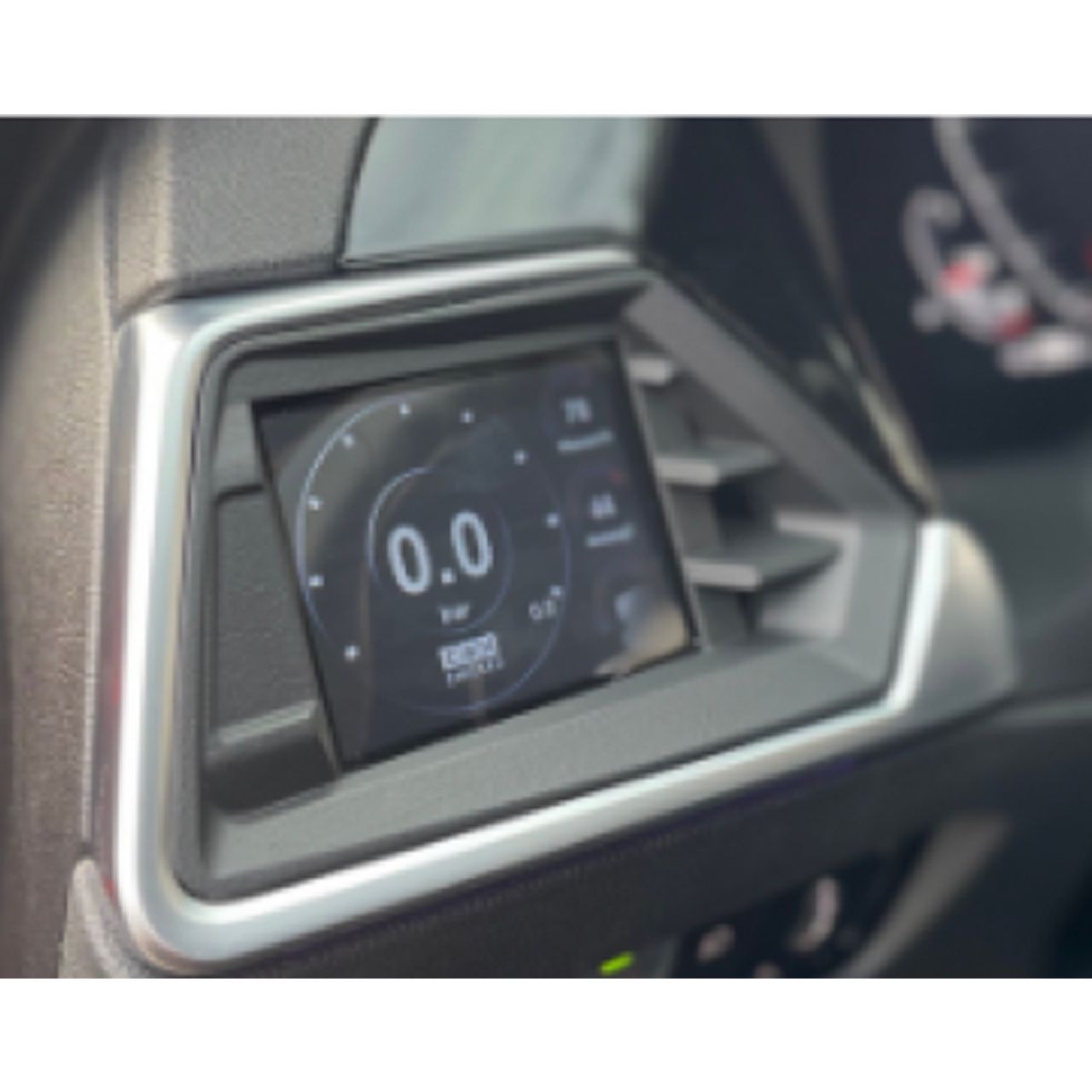

– 10 different widgets (digital number, bar, speed, single pointer, log, table switch, image (from SD card), number, circle display, Haldex)
– Widgets can be moved and resized using drag'n'drop
– Depending on the widgets, color customization is possible

The DSS online configurator is available as an alternative. Here the views can be configured during operation via USB.



Performance Monitor

• High-speed CAN integration gives you access to up to 64 vehicle sensors that you can view in real-time. The 2.8″ touchscreen allows you to swap out sensors on the fly and set up custom zones and alerts with the DSS software.



Switch sides with the cruise control button



Driver Dynamics



Access to all data from the engine control unit

diagnostic function

Swipe down from any page to instantly diagnose the fault memory. CANchecked can read, diagnose and delete the errors for the engine in plain text.



data logging

• Easily access the log when needed and store it on the internal SD card.



Plug & play installation

• CANchecked displays with vehicle-specific installation frames are precision-manufactured and fit perfectly into the interior of your vehicle without impeding the functionality of your vehicle's ventilation system.



Expandable functionality

• 4 analogue and 2 digital inputs enable the monitoring of sensors and devices from other manufacturers. Future licenses under development will allow integration of Haldex all-wheel drive controls, water-methanol injection systems and ethanol fuel systems.

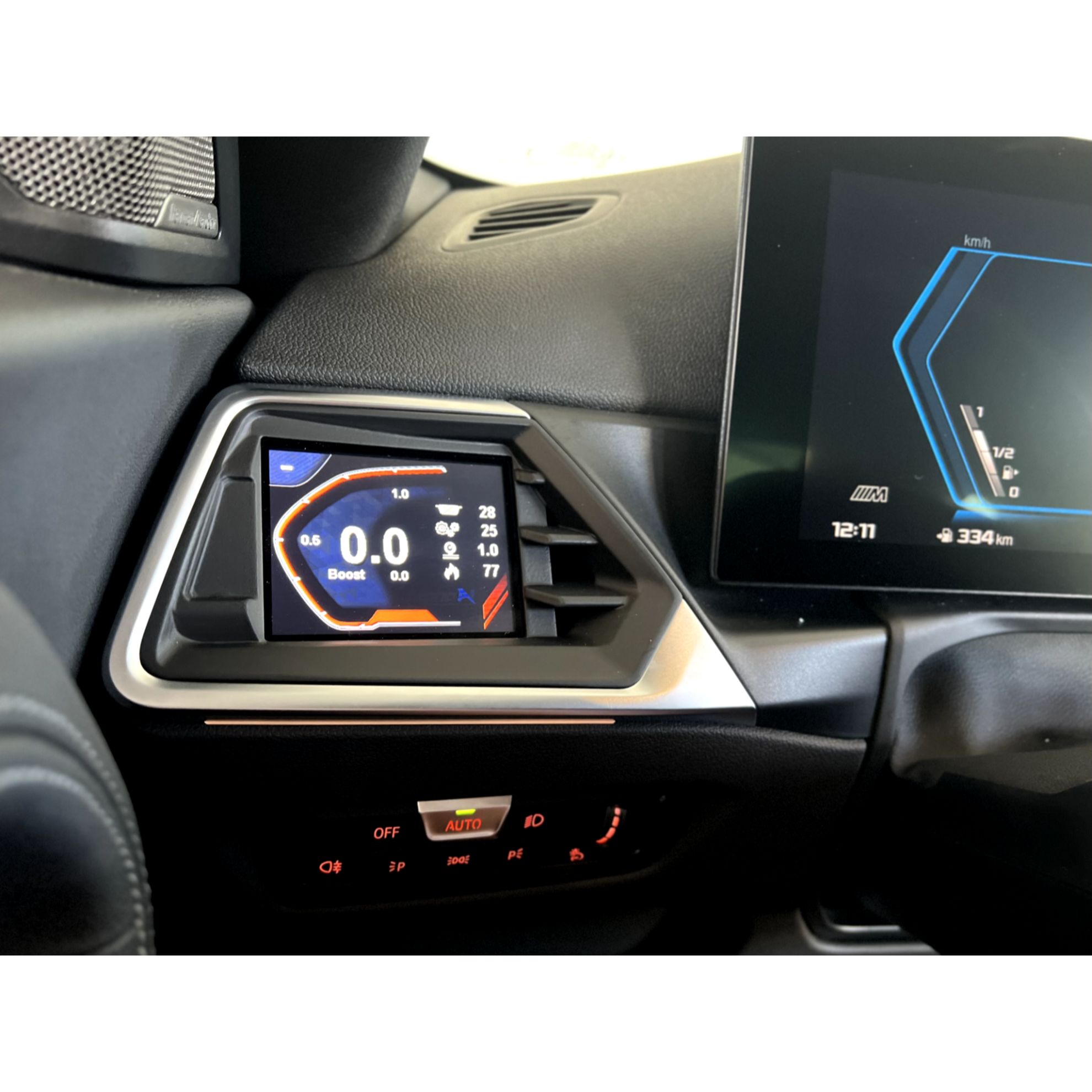

Customizable screen layouts

• CANchecked comes with six preinstalled dashboards. A total of ten display pages can be customized using the included software and library of widgets.



Your data, just the way you want it!

• CANchecked can display up to ten pages and has access to up to 64 sensors in your vehicle. Use the touchscreen to navigate between pages and choose which sensor you want to view. Need more customization options? You can personalize your views by customizing the graphs, sensors and widgets using the included DSS software. We have already loaded some examples onto your CANchecked display to make it easier for you to get started.



CANchecked optional accessories:

• A wide range of sensors, such as oil and water temperature, boost pressure, oil and fuel pressure, etc...
• Other vehicle-specific integrations



Delivery:

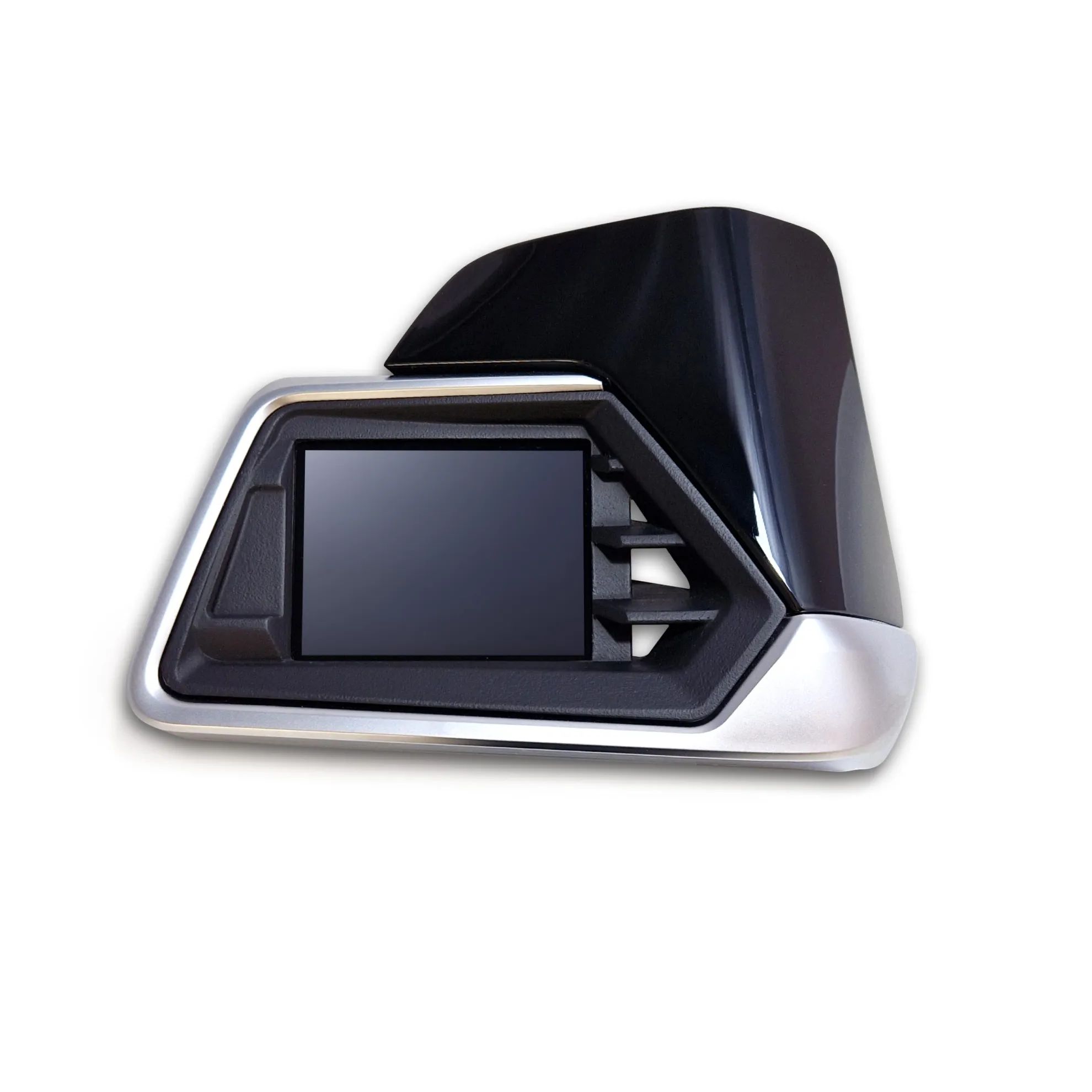

• vehicle-specific bracket / mounting frame for ventilation grilles

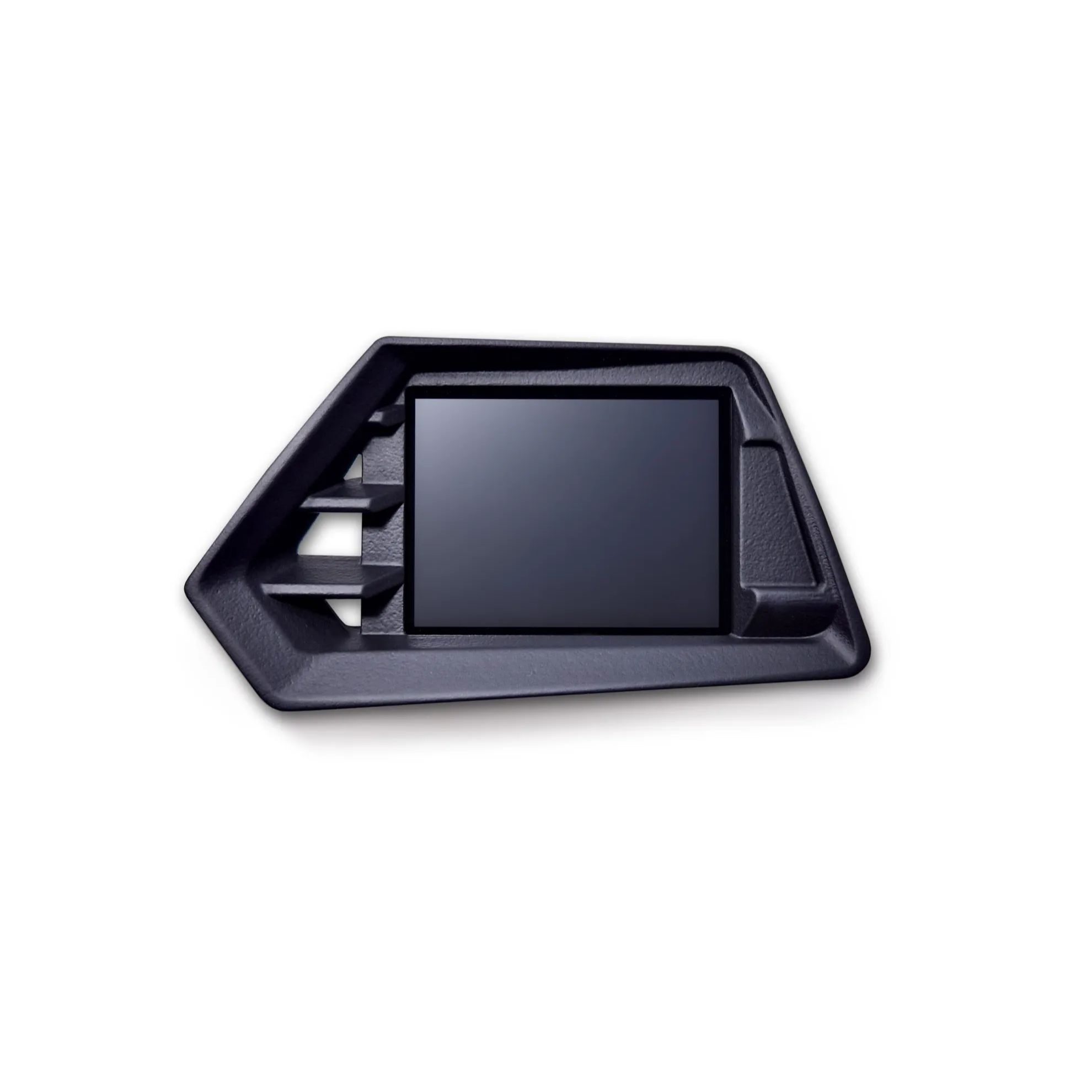

• CAN checked 2.8 inch display
• Vehicle-specific connection cable
• 8GB micro SD card
• Micro SD card adapter
• Quickstart Guide



If available, installation instructions are stored on the CANchecked website

The display can be individually configured via the website. The dbc converter for the Can-Bus protocol and the online configurator for the widgets, which can also be set using the touch display.
The temperature range of the display is -10°C to 70°C.
12V is required as a power supply, 5V or 24V are optionally possible.

FAQ:

Does the display get hot in the ventilation shaft?
no The screens are always protected from heat streaming through the vents.
Does the air vent also work with the display installed?
yes she does We are constantly developing ventilation solutions that allow the airflow to continue past the display through special tunnels.
Can I change the appearance of the display, units and scales?
Yes! With the various widget packs and the option of uploading your own graphics, you can completely customize your display.
Can I use analog inputs?
Yes, there are 4 analog inputs. So you can read pressures, temperatures, etc. We can also put together complete packages for what you need!
Which ECU data can CANchecked access?
By default, we deliver a ready-made TRI file with your display. All sensors that are queried are defined here, e.g.:

• Temperatures: exhaust gas temperature, engine water temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG oil temperature
• Pressures: boost pressure, ambient pressure, fuel pressure, pre-supply pump pressure
• Lambda / Mixture: Lambda value, injection timing, short-term lambda control, long-term lambda control
• Other: RPM, air mass (g/s), vehicle speed, throttle valve angle, total ignition angle, ignition angle reduction per cylinder, N75 pulse rate in%, voltage at terminal 30, oil level, torque, gearbox...
• If values ​​are missing, they can easily be added.



Can I change the look of the boost gauge graphic to my vehicle?
You can use the CANchecked Display Setup Software to upload your own graphics. They must be in the following format:

• Image type: 24bit BMP file (R8 G8 B8)
• Sizes: Background: 320 pixels X 240 pixels, Boost Gauge: 240 pixels X 240 pixels, Speedometer: 160 pixels X 160 pixels

If we do not expressly write about a parts certificate or a general operating permit (ABE) in the product text, it is a motorsport item that is not permitted in the road traffic regulations (StVO) and thus the operating permit expires if there is no entry according to § 21 StVO he follows!
