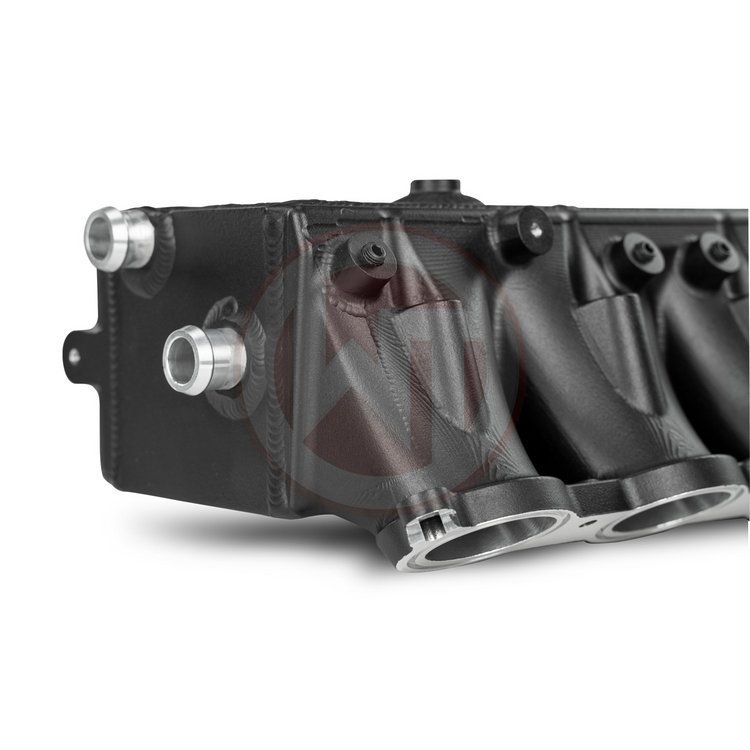

Wagner Tuning Intake manifold with integrated Intercooler B58 Gen 2 Engine BMW/Supra

Final cast aluminum version


Toyota Supra - BMW EVO1 intake manifold with integrated intercooler for the B58.2 engine

Part number: 200001175 Fits plug and play to following models:

BMW 2er G42 M240i
BMW 3er G20/G21 M340i
BMW 4er G22/G23/G26 M440i
BMW Z4 G29 M40i
Toyota GR Supra MK5

The 3.0 Liter B58.2 turbo engine of the specified BMW/Toyota models is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is realized by a watercooled intercooler, which is integrated directly into the intake manifold.

The WAGNERTUNING intake manifold with integrated intercooler has got a new performance core which was specially developed for the high requirements and individual mounting position of the B58.2 engine and offers 128% more external core volume compared to the original intercooler. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and at the same time the best possible internal air flow. With the help of CFD simulations, the CNC-milled endtanks were designed for optimal air flow conditions. The result is an excellent cooling property with a minimal back pressure. That`s why this kit is also perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

All WAGNERTUNING radiators are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).

Advantages of this product:
- significantly better cooling performance (up to 20°C cooler IAT)
- maximum mechanical discharge of the turbocharger (35% less back pressure)
- more power and torque for your engine
- 100% pressure resistance
- 100% Plug and Play (no modifications)
- preprocessed port fuel injection (Fuel Rail optionally available here )
- three 1/8 NPT ports for measuring additional parameters
- six preprocessed NOS or WMI ports (for example 90° NOS Nozzles 1/16 NPT here )
- this intake manifold is suitable for all performance levels
- up to 4 years warranty
- important information for oil service: the oil filter still can be replaced without removing the intake manifold again!
