Wagner Tuning Radiator Kit Mercedes Benz (CL)A 45 AMG

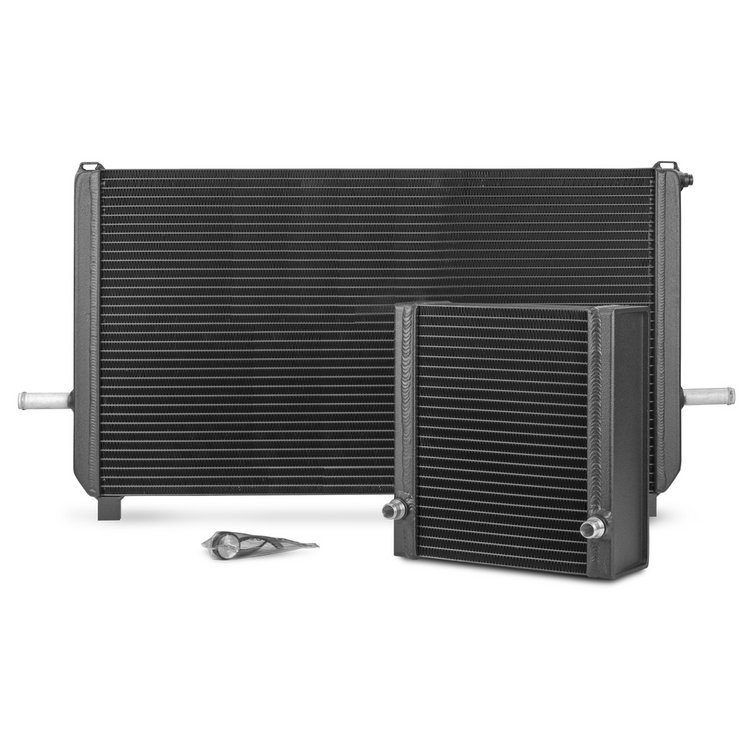

Competition Radiator Kit for the AMG A 45 and CLA 45

Mercedes Benz W176 A 45 AMG 265-280KW/360-381PS (2013-2018)
Mercedes Benz C117 CLA 45 AMG 265-280KW/360-381PS (2013-2018)
Mercedes Benz X156 GLA 45 AMG 265-280KW/360-381PS (2014-2019)

The 2.0L M133 turbo engine of the specified A-Class models from AMG is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is not realized by the ambient air as cooling medium (as usual), but made with its own cooling water circuit. A reduction of the temperature of the cooling water is directly equated with an improved cooling performance of the charged air. This is exactly where the advantages of the WAGNERTUNING upgrade water cooler comes into play.
The new developed competition racing core of the WAGNERTUNING high performance water coolers increase the radiator volume of the OEM water coolers by a total of 78 %. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and allows at the same time enough air flow for the surrounding components (for example the engine water cooler) for its own heat exchange. The water coolers are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).

Dimensions OEM front mounted radiator:
640 mm x 390 mm x 16 mm
V = 3,99 Liter
A = 2496 cm²

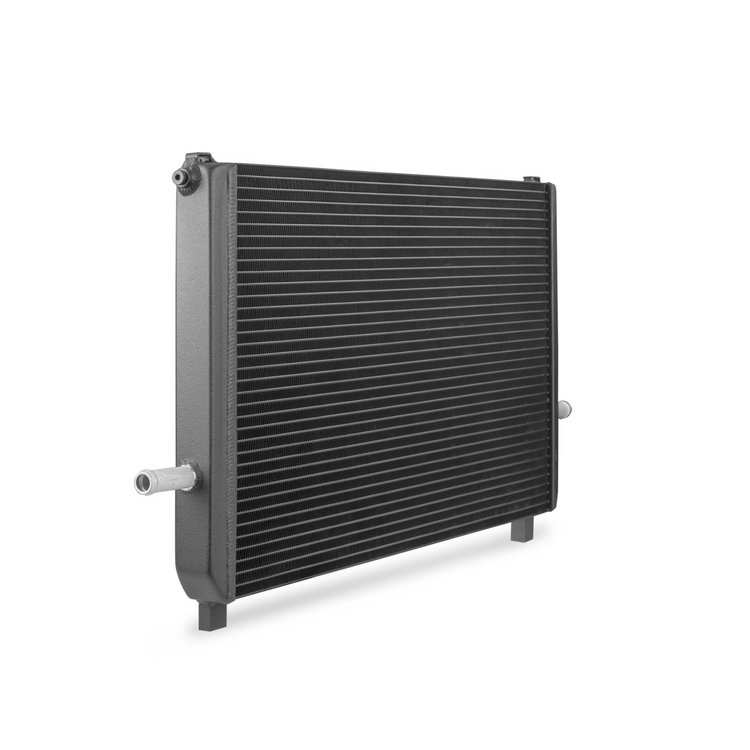

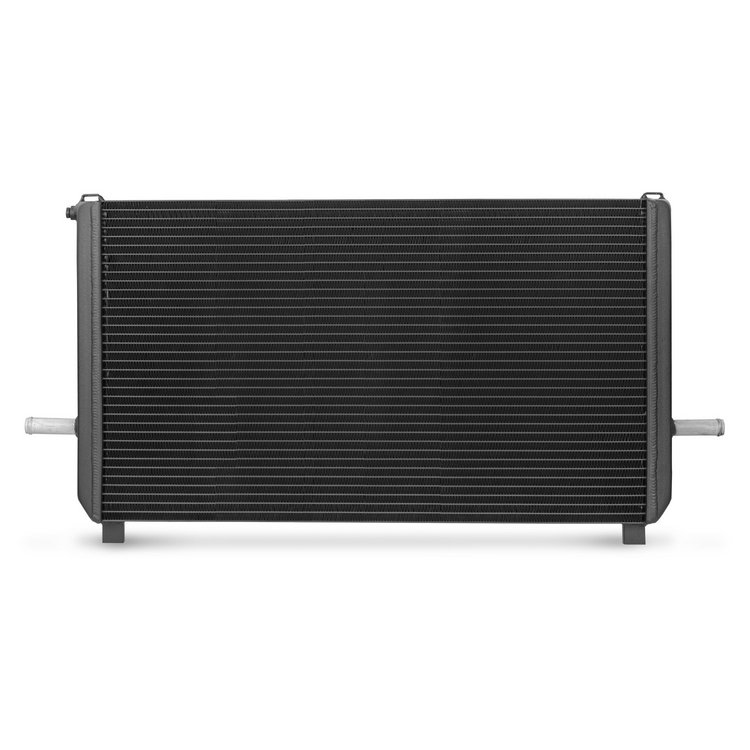

Dimensions WT front mounted radiator:
616 mm x 362 mm x 32 mm
V = 7,14 Liter
A = 2230 cm²

Dimensions OEM side mounted radiator:
248 mm x 180 mm x 40 mm
V = 1,79 Liter
A = 446 cm²

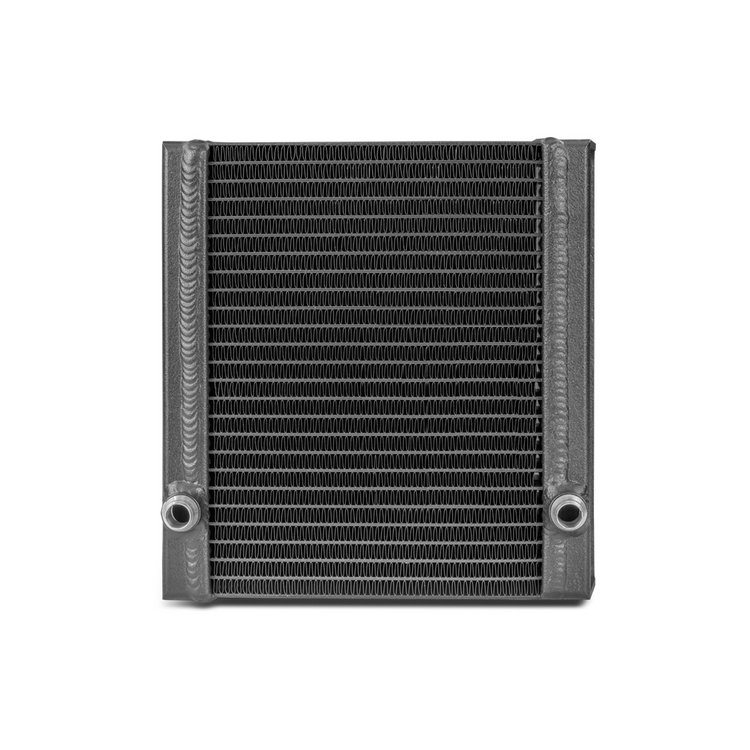

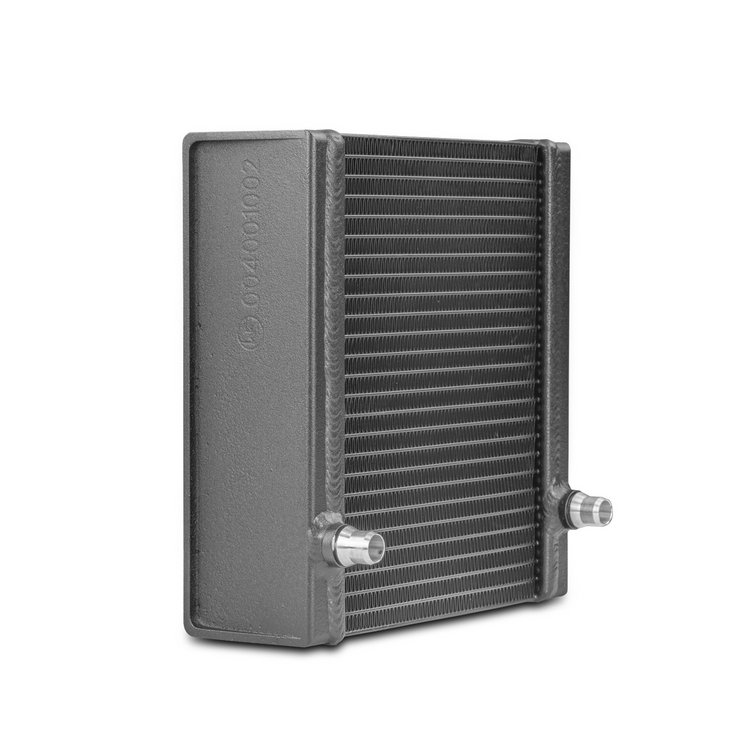

Dimensions WT side mounted radiator:
252 mm x 184 mm x 68 mm
V = 3,15 Liter
A = 464 cm²
